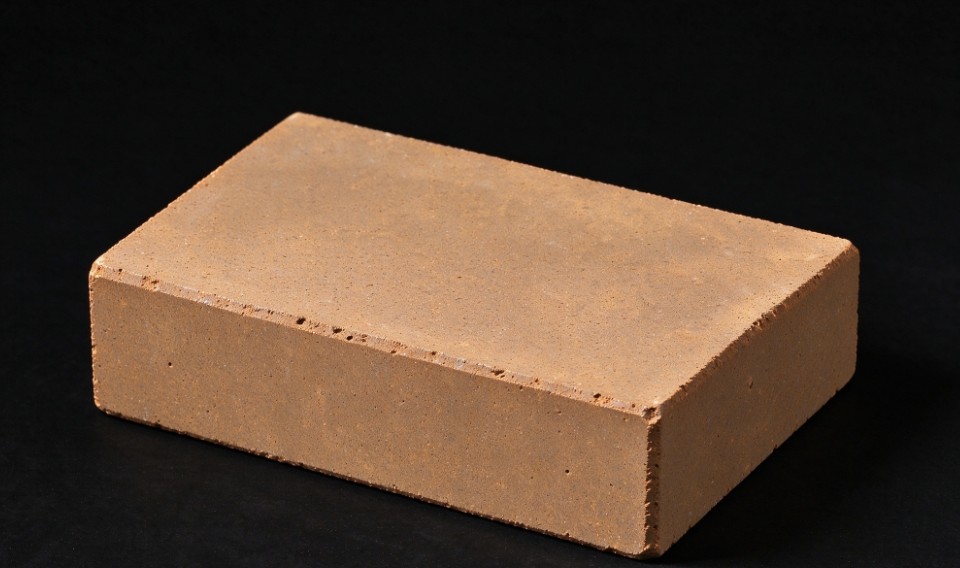

Magnesia Brick is basic shaped refractory brick sintered from dead burned magnesia (DBM) raw material. It features high melting point and excellent resistance to alkaline slag.
Key Features：
- Extremely high melting point above 2800℃, excellent high-temperature strength.
- Superior alkaline slag corrosion resistance, ideal for basic furnace environment.
- Low hydration rate, good high-temperature volume stability.
- High bulk density and low porosity, strong wear resistance.
- Resistant to molten basic slag in steelmaking process.
Available Grades：
M-90: MgO ≥90%
M-92: MgO ≥92%
M-95: MgO ≥95%
M-97: MgO ≥97%
Main Applications：
- Steelmaking converter, electric arc furnace, ladle and refining furnace lining.
- Cement rotary kiln burning zone and lime kiln lining.
- Non-ferrous metal smelting furnaces with alkaline slag.
- Glass melting furnace regenerator.
Available Sizes & Packing：
Standard size: 230×114×65 mm; 230×114×75 mm, 171×114×65 mm, custom curved & wedge bricks available.
Packing: Wooden pallets with waterproof wrapping.
COA certificate provided per batch.
Specification:
Chemical Composition | M-90 | M-92 | M-95 | M-97 |
MgO | 90% min | 92% min | 95% min | 97% min |
CaO | 2.5% max | 2.2% max | 2.0% max | 1.5% max |
SiO₂ | 4.0% max | 3.0% max | 2.0% max | 1.2% max |
Bulk Density | 2.85 g/cm³ min | 2.90 g/cm³ min | 2.95 g/cm³ min | 3.00 g/cm³ min |
*Specifications and Sizes can be customized upon request.
Available Sizes & Packing：
Standard size: 230×114×65 mm; 230×114×75 mm, 171×114×65 mm, custom curved & wedge bricks available.
Packing: Wooden pallets with waterproof wrapping.
COA certificate provided per batch.
