Graphite electrode is a cylindrical carbon conductive material manufactured from needle coke and calcined petroleum coke as aggregate, coal tar pitch as binder. The production process includes raw material calcination, kneading, extrusion, baking, high-pressure impregnation, graphitization and precision machining. It is classified into RP Regular Power, HP High Power and UHP Ultra-High Power grades, used together with matched graphite nipples.
Graphite electrode is an essential conductive consumable for electric arc furnace steelmaking and submerged arc furnace smelting. Heavy electric current passes through electrodes to generate electric arc with temperature over 3000°C to melt furnace charge. It features dense and uniform structure, low resistivity, excellent thermal & electrical conductivity, high mechanical strength at high temperature, low thermal expansion coefficient, good thermal shock resistance and low ash content.
Key Features：
- Low electrical resistivity, superior conductivity, reduces power consumption and improves smelting efficiency
- Excellent high-temperature thermal stability, sublimates at 3650℃ without melting
- Low thermal expansion coefficient, good thermal shock resistance, not easy to crack under sharp temperature changes
- Dense texture and high mechanical strength, low breakage rate during steelmaking
- Low ash and impurity content, minimizing contamination to molten steel
- Equipped with precision threaded nipples for stable connection and continuous current transmission; custom diameters available
Available Grades：
- RP Regular Power Graphite Electrode: for conventional EAF and submerged arc furnace under medium & low current
-HP High Power Graphite Electrode: for high-power electric arc furnaces and Ladle Refining Furnace (LF)
-UHP Ultra-High Power Graphite Electrode: large capacity EAF, mainstream high-grade material for electric furnace steelmaking
Main Applications：
- EAF electric arc furnace steelmaking (scrap melting), LF ladle refining furnace secondary steel refining
- Submerged arc furnace: silicon metal, ferrosilicon, yellow phosphorus, calcium carbide, brown fused alumina, ferroalloy smelting
- Other high-temperature resistance furnaces, graphitization furnaces and metallurgical equipment

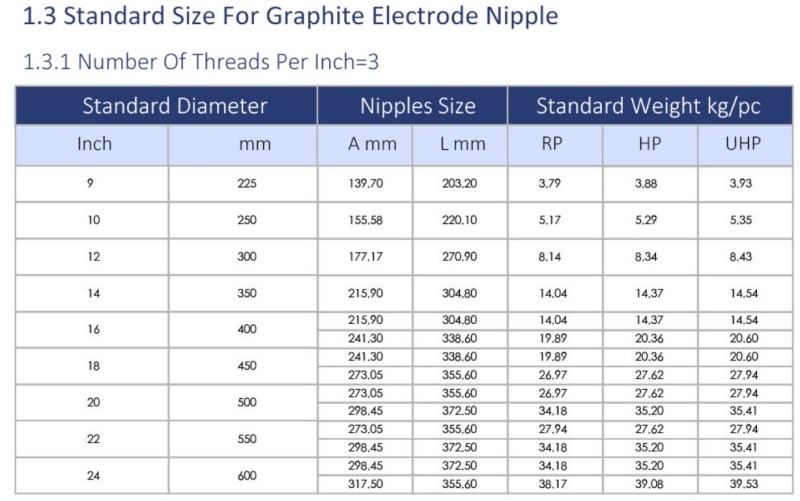

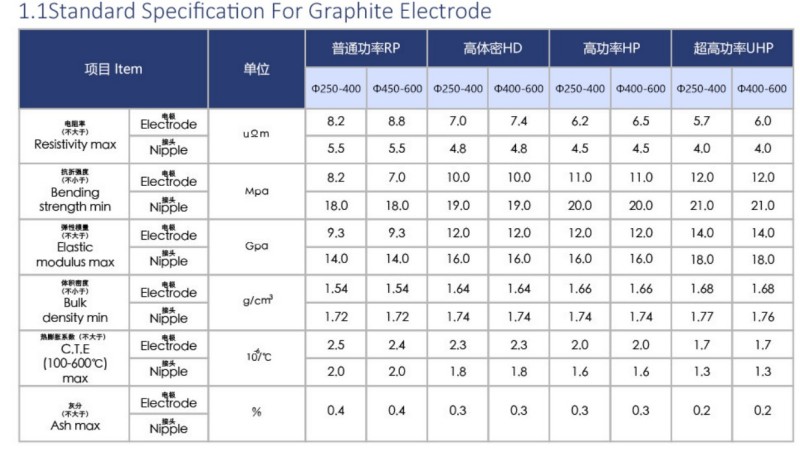

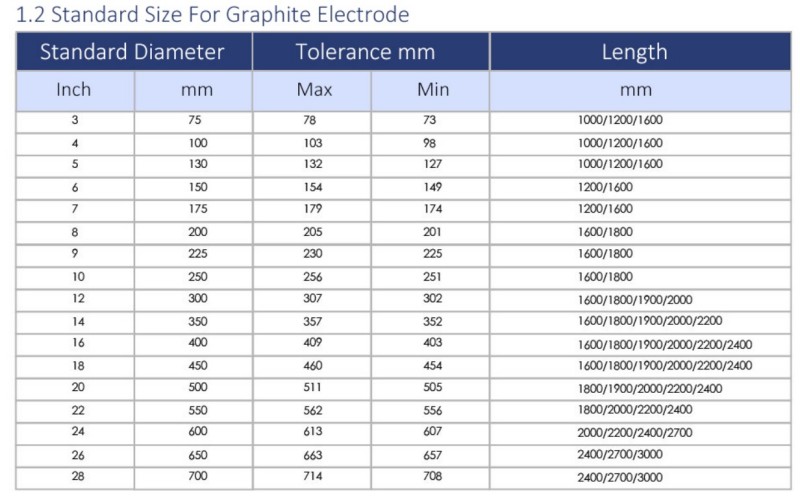

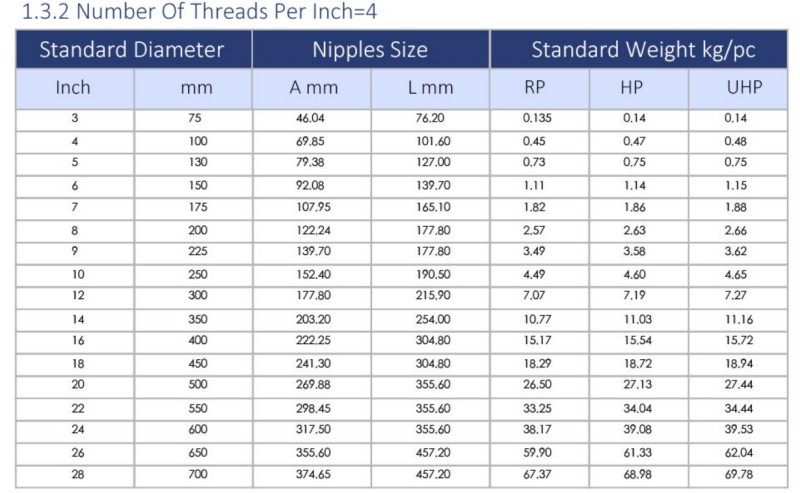

Specification:
*Specifications and Sizes can be customized upon request.
